ISO5211 Standard is applied.
Easy to adapt: Lever / Gear / Pneumatic or Electric Actuator
SUNG DO VALVE scroll down
VALVE
- PRODUCT
- VALVE
SDV 700 series
Wafer / Lug / Flange Type Valve
-

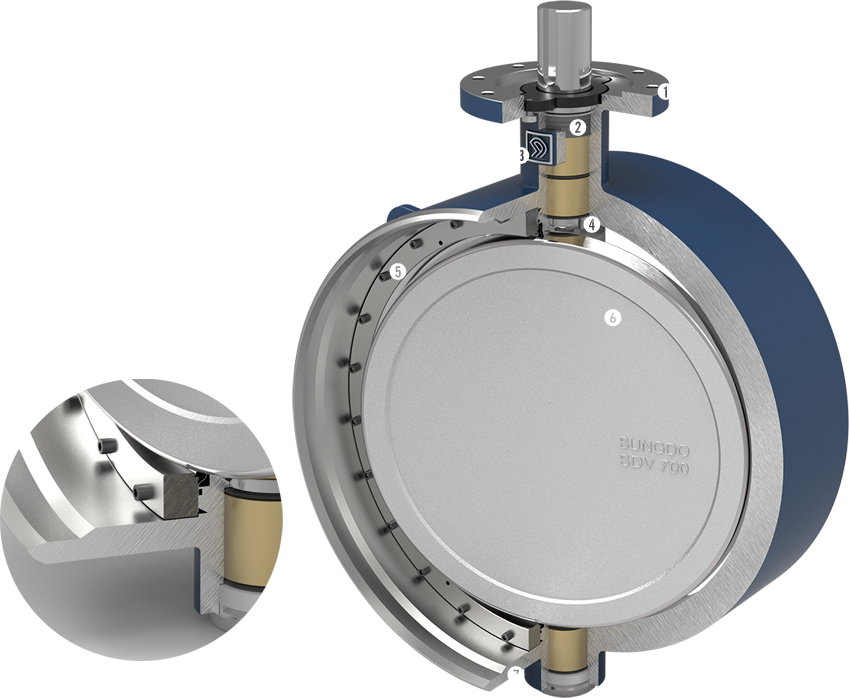

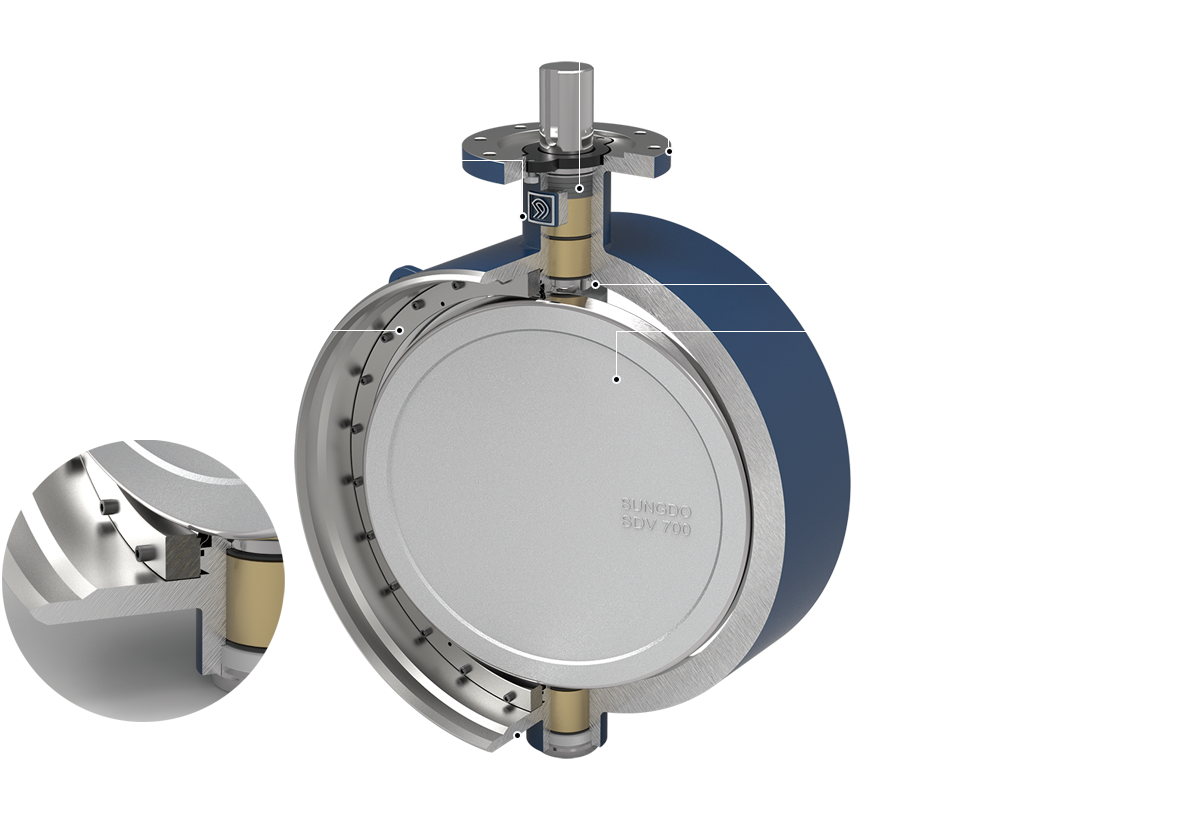

1 Mounting Flange
-
2 Application Shaft PackingSuitable for a variety of use environments such as high temperature, pressure & vacuum.
Materials: Graphite / V-type PTFE / Inverted V PTFE -
3 Long-neck DesignDesigned to accommodate insulation & double sealing.
-
4 Offset DesignPrevents excessive seat wear and deformation by providing a cam-like action.
Enables frequent operation. -
5 Face to FaceDesigned by ASME B16.10 or user requirements specifications.
-
6 DiscDesigned to maximize flow and minimize turbulence.
Precision streamlined disc for optimal Cv values. -
7 End ConnectionDesign accommodates welding connection for ASME / GOST / EN by Butt-Weld type.
VALVE
SPECIFICATION
SPECIFICATION
-
Vallve Size Range
- · 8"(200A) ~ 64"(1600A)
- · Valve Pressure Range: PN16 ~ PN40
-
Connection Type
- · Butt Weld / Flange
-
Valve Connection
- · ANSI B16.25
- · ANSI B16.5 CLASS 150, 300
- · PN16 ~ 40
-
Valve Face to Face
- · ANSI B16.10
- · API 609
- · ISO 5752
- · MSS SP-67
- · BS 5155
- · GOST, China Standard
-
Vallve Operator
- · 8"(200A) ~ 64"(1600A): Worm Gear
- · 8"(200A) ~ 64"(1600A): Pneumatic and Electric Actuator
-

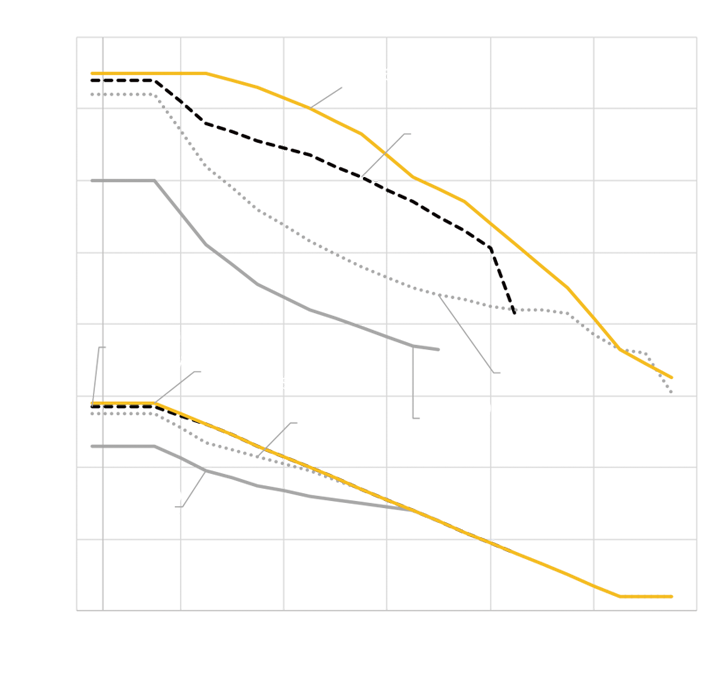

Seat Specification
- · 316L: -70°C ~ 349°C (-100°F ~ 660°F)
- · Inconel: -70°C ~ 593°C (-100°F ~ 1100°F)
- · Over the temperature range: Option
-
Valve Pressure Test
- · API 598 / ANSI B16.34
- · ANSI B16.104 FCI-70 (Control Valve Only)
- · ISO 5208
-
Application
- · District Heating
- · Steam and Industrial Application
- · Bi-Direction
